Diamond Grade Reflective Sheeting is a high-performance retroreflective material specially developed for road safety scenarios. Integrating advanced full-cube prismatic technology, it provides superior visibility in all lighting conditions—day, night, twilight, and inclement weather. As a core product for traffic safety protection, this sheeting maximizes the conspicuity of traffic signs, effectively guiding drivers, reducing traffic accidents, and safeguarding motorists and road workers.
Core Product Technology & Key Features
Reflective Technology: Full-Cube Prismatic
The core of Diamond Grade Reflective Sheeting lies in its advanced Full-Cube Prismatic reflective technology, representing a breakthrough compared to traditional truncated cube or glass bead technologies. This technology removes non-reflective areas, achieving 100% active reflective area in theory with an actual maximum reflection efficiency of 58%—far higher than the 23% reflection efficiency of high-intensity reflective sheeting using glass bead technology.
Each square centimeter contains more than 930 micro-cube prismatic units arranged in a regular pattern to control light paths. The lower layer forms an air layer through sealing, utilizing light diffraction and total internal reflection to achieve superior reflective effects without metal reflective layers, ensuring bright visibility even at large incident and observation angles.
Adhesive Type: Pressure-Sensitive Adhesive (PSA)
Features high-quality Pressure-Sensitive Adhesive with strong adhesion, excellent weather resistance, and easy application. The solvent-free adhesive provides excellent bonding to various substrates including aluminum, metal, wood, plastic, and plywood, maintaining firm attachment without peeling, bubbling, or wrinkling in harsh outdoor environments.
Imaging Methods
Supports three flexible imaging methods:
Digital Print: Compatible with qualified digital printer solutions for high-definition printing of complex patterns, text, and logos
Electronic Cut: Enables precise cutting of various shapes and sizes according to design requirements
Screen Print: Suitable for large-batch production of simple patterns and text with strong color fastness
Compliance with International Specifications
Strictly meets international high-standard specifications including ETA Class 3 and ASTM D4956 Type XI. Also complies with DIN 67520:2013 Class RA3a for long-distance performance and exceeds standards of lower-grade reflective sheeting, ensuring excellent retroreflective performance, durability, and safety for global road safety projects.

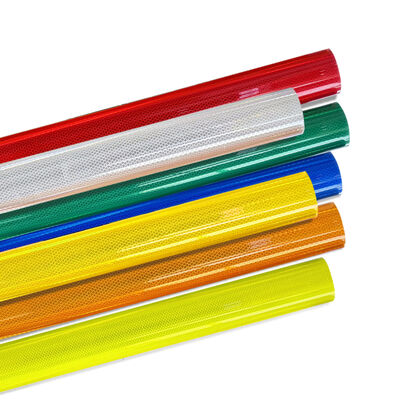

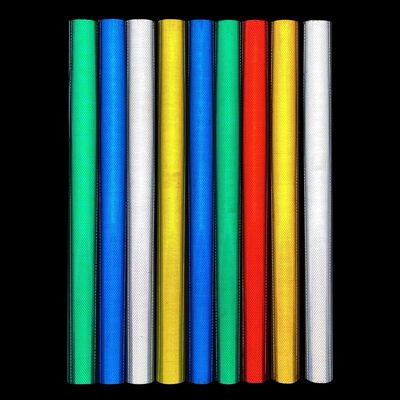

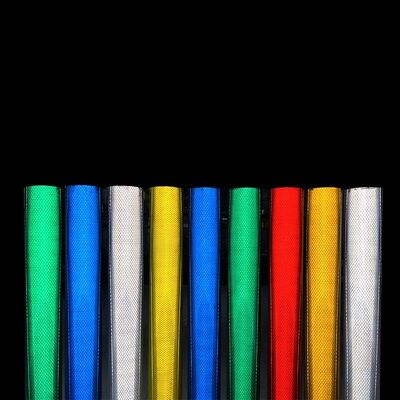

Color Options
Available in a wide range of high-visibility colors including White, Yellow, Red, Green, Blue, Orange, Brown, and Lime Green Yellow. Also provides fluorescent color options (fluorescent yellow, fluorescent yellow green, fluorescent orange) that absorb and convert light energy, making signs more vivid in low-light conditions. Fluorescent signs are detected an average of 53 meters earlier than non-fluorescent signs.
Operating Temperature Range
Optimal operating temperature is 18°C~28°C, where the pressure-sensitive adhesive provides best adhesion and the sheeting maintains good flexibility and ductility. The product exhibits excellent high and low temperature resistance in actual use, adapting to various climatic conditions worldwide.
Product Specifications
Standard specification: 1.22m × 45.72m (4ft × 150ft), suitable for large-batch production of road signs. Customized services available including customized width, length, colors, and patterns for special road safety scenarios such as temporary work zones, emergency traffic control, and special warning signs.
Main Applications
Diamond Grade Reflective Sheeting is widely used in various road safety scenarios:
Highways and Freeways/Expressways: Used for guide signs, prohibitory signs, warning signs, and milestone signs. Superior long-distance and large-angle reflective performance ensures drivers recognize sign information at high speeds, providing sufficient reaction time. Studies show signs made of Diamond Grade Reflective Sheeting can reduce nighttime accidents by up to 46% and long-term crashes by 25-42%.
Work Zones: Applied to temporary traffic signs in road construction, maintenance, and utility work areas. Flexible and portable characteristics make it easy to set up and disassemble while high visibility protects construction workers and passing vehicles.
Warning Signs: Used for various warning signs including curve warnings, slope warnings, pedestrian crossings, and animal crossings. Bright reflective effect and rich color options make warning signs highly conspicuous, effectively alerting drivers to potential hazards.
Manufacturer Profile - LU
Since 1998, Anhui Lu Zheng Tong New Material Technology Co., Ltd. has specialized in R&D, production, sales and service of reflective materials and related safety products. LU brand products include reflective sheeting, vehicle reflective tapes, marine SOLAS reflective tapes, photoluminescent films, glow in the dark tapes, and reflective traffic signs, widely applied in roadway safety, work area safety, vehicle safety, marine safety and personal safety.
With ISO 90001, 3C, E-mark ECE104, DOT-C2, Intertek approvals and over 20+ patents, products are exported worldwide. The 13,000 m² production base features a strong R&D team, automatic production lines, advanced equipment, and complete quality inspection systems to provide customization capability and stable production capacity.
Technical Support & Services
We provide comprehensive technical support including installation guidance, application recommendations, and performance consultation. Services also include product testing, customization support, and professional training to meet specific project requirements.
Packing & Shipping
Packaging
Each roll packed in sturdy cardboard carton
Protective plastic wrapping prevents scratches and transit damage
Custom packaging services available
Shipping
Shipped via ground transportation
Shipping cost calculated based on destination and weight
