Diamond Grade Reflective Sheeting with Full-Cube Prismatic Construction and ASTM D4956 Type XI Compliance

Brand Name:	LU
Model Number:	LZT9800
MOQ:	1 Roll
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000 Roll/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Reflectivity Grade:

Diamond Grade

Class Of Performance:

EN12899 Class RA2/ASTM D4956 Type XI

Reflective Construction:

Full-cube Prismatic

Adhesive Type:

Pressure-sensitive Adhesive(PSA)

Warranty:

10 Years

Surface Material:

Acrylic

Weather Resistance:

Excellent

Sizeoptions:

Available In Rolls And Sheets Of Various Sizes

Packing:

Carton

Specification:

48 In*50 Yd；1.22*45.7m

Packaging Details:

1 Roll/Carton

Supply Ability:

10000 Roll/Month

Highlight:

10 years warranty Diamond Grade Reflective Sheeting

Full-cube prismatic Microprismatic Reflective Sheeting

ASTM D4956 Type XI Retroreflective Sheeting

Product Description

Diamond Grade Reflective Sheeting 9800 White

Premium diamond-grade microprismatic reflective material engineered for high-speed traffic environments and high-safety-level signage systems.

Technical Specifications

Item	Specification
Reflective Grade	Diamond Grade
Reflective Technology	Sealed microprismatic retroreflection
Typical Service Life	10 years (outdoor)
Thickness (without liner)	0.43 - 0.48 mm
Adhesive Type	Pressure-sensitive adhesive (PSA)
Substrate Compatibility	Aluminum and standard sign substrates
Operating Temperature	−30 °C to +65 °C
Application Temperature	≥ +10 °C
Weather Resistance	UV, moisture, and temperature resistant
Surface Properties	Dirt-resistant, easy to clean

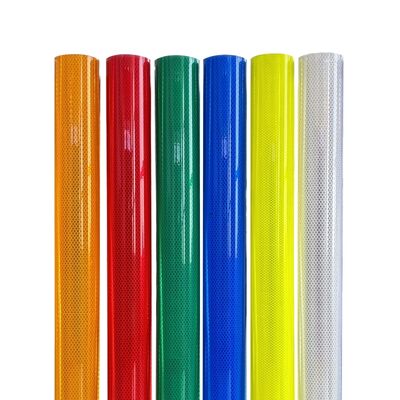

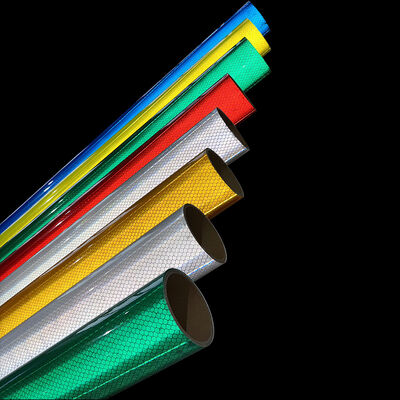

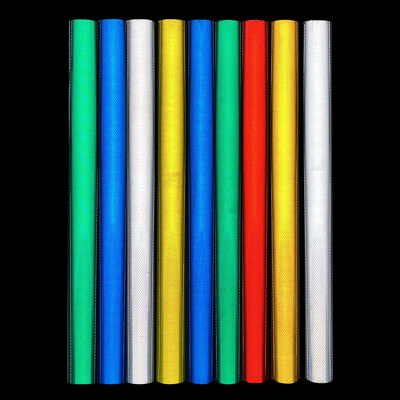

Available Colors	White, Yellow, Red, Blue, Green (customizable)
Applicable Standards	ASTM D4956 Type XI

Utilizing advanced full-cube microprismatic retroreflection technology, the sheeting delivers exceptional brightness and superior visibility, even under nighttime conditions, rain, fog, and complex or low-light environments. Designed to meet the demanding requirements of permanent traffic control and safety applications, 9800 Diamond Grade Reflective Sheeting ensures clear and reliable recognition of road information at long viewing distances and wide entrance angles, significantly enhancing driver awareness and overall roadway safety.

Product Highlights

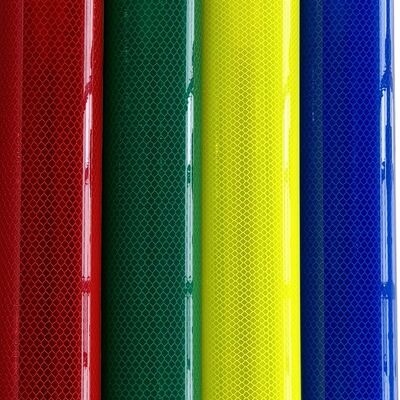

Diamond-Grade Microprismatic Construction
Incorporates a high-density microprismatic structure that provides significantly higher retroreflectivity than engineering-grade and high-intensity reflective sheetings.
Excellent Wide-Angle Performance
Maintains outstanding visibility at wide entrance and observation angles, ensuring clear recognition from long distances and improving early warning effectiveness for drivers.
Outstanding Outdoor Durability
Engineered for long-term outdoor use, offering excellent resistance to UV exposure, weathering, and temperature extremes without fading, cracking, or delamination.
High Installation Efficiency
Features a smooth, uniform surface that allows easy cutting, printing, and application, improving fabrication efficiency and reducing installation time.

Applications

Highway and expressway traffic signs
Urban road and arterial roadway signage

Diamond Grade Reflective Sheeting Manufacturer - LU

LU is a professional manufacturer specializing in diamond grade microprismatic reflective sheeting, dedicated to providing high-performance reflective solutions for traffic safety and industrial signage worldwide. With a strong focus on technology innovation, quality consistency, and long-term reliability, LU has established itself as a trusted supplier in the global reflective materials industry.
